Instruments and Kit

The Refirm kits are designed for your osteotomy requirements and includes a number of accessories to enable easy and successful placement of implants. Keeping in mind market feedback, we have designed each part with precision to make your surgical experience comfortable starting from the osteotomy procedure to pick up of the implants and its secure placement in the osteotomy site.

Key features

  • Advanced Hex driver design to ensure that the implant and cover screw is held firmly during transfer of the same into the osteotomy site
  • Stoppers to assist you and assessing drills designed for optimal preparation of osteotomy site.
  • Drills designed for optimal preparation of osteotomy site
  • Countersink drills to aid you in cortical bone osteotomy for D1 type bone
  • Direction pins help you to assess the selection of gingival formers at the time of implant placement.
  • Paralleling pins and depth gauges to help you assess accurate implant positioning.
  • Torque wrench with gauge for torque measurements
Instruments-&-Kits

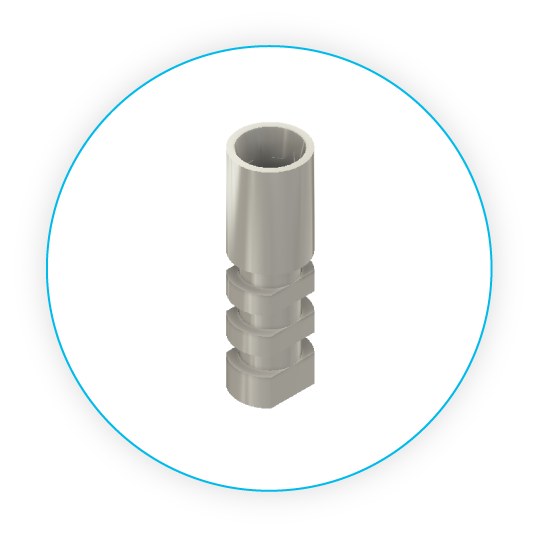

Implant Analog

Implant Analog
Product Code 11R-LA-XR001

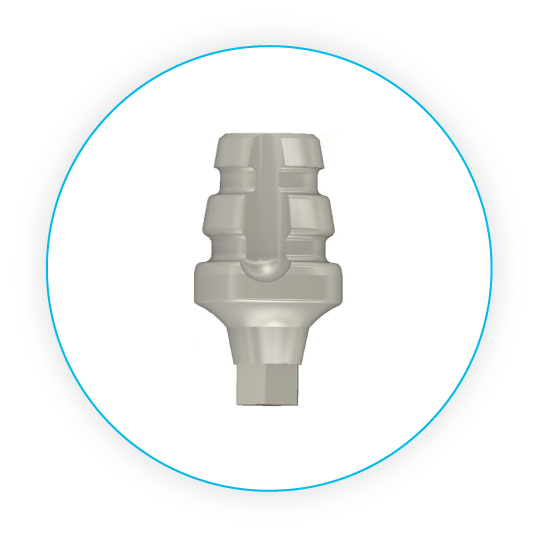

Impression Coping

Impression Coping
Product Code 11R-LC-XR001

Implant Closed Tray Coping screw

Product Code 11R-LC-S001
Name Implant Closed Tray Coping screw Implant Open Tray Coping screw
Product Code 11R-LC-S001 11R-LC-S002

Implant Open Tray Coping Screw

Product Code 11R-LC-S002

Lance Drill

Product Code 11R-TD-XR001-A

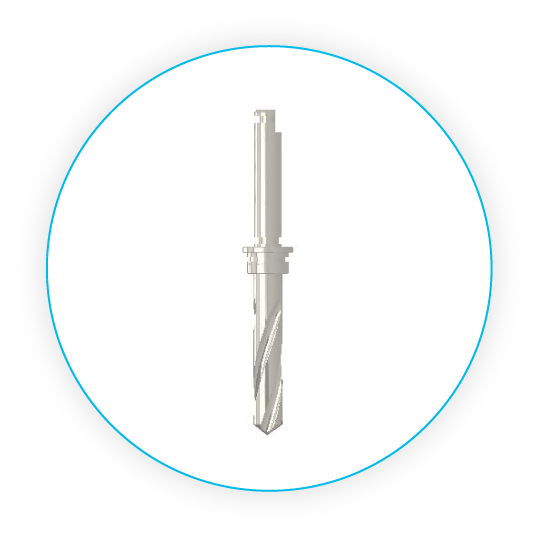

Straight Drill

Pilot Drill

Diameter(mm) Ø 2.0
Product Code 11R-TD-XR002-A

Taper Form Drill

Diameter(mm) Ø 2.9 Ø 3.4 Ø 3.9 Ø 4.4 Ø 4.9
Product Code 11R-TD-XR004-A 11R-TD-XR005-A 11R-TD-XR006-A 11R-TD-XR007-A 11R-TD-XR008-A

Countersink Drill

Diameter(mm) 3.2/2.9 3.7/3.4 4.2/3.9 4.7/4.4 5.3/4.9
Product Code 11R-TD-XR009 11R-TD-XR010 11R-TD-XR011 11R-TD-XR012 11R-TD-XR013

Drill

Diameter(mm) Ø 2.5
Product Code 11R-TD-XR003-A

Stoppers

Implant length (mm) For drill
Ø 2.0 to Ø 3.4		 For drill
Ø 3.9 to Ø 4.9
8.5 11R-TS-XR001 11R-TS-XR006
10.0 11R-TS-XR002 11R-TS-XR007
11.5 11R-TS-XR003 11R-TS-XR008
13.0 11R-TS-XR004 11R-TS-XR009
15.0 11R-TS-XR005 11R-TS-XR010

Implant Driver Assure Series

Assure Driver

Type Product Code
Assure Short 11R-TR-XR020
Assure Long 11R-TR-XR021

Assure Physio Adapter

Product Code 11R-TR-XR027

Paralleling Pins

Diameter(mm) 2.0/2.5 2.5/2.9
Product Code 11R-TP-XR001 11R-TP-XR002
Parallel Pins

Hand Piece (HP) Implant Driver – Flex Grip

Hand-Piece-Implant-(HP)-Flexigrip
Type Product Code
Short 11R-TR-XR005
Long 11R-TR-XR006

Surgical Kit –

Elite

Product Code 11R-TK-XR001

Surgical Kit –

Compact

Product Code 11R-TK-XR002

Surgical Kit –

Prime

Product Code 11R-TK-XR003

Contra – Angle Connector

SQ HEAD for Ratchet

Product Code 11R-TR-XR029

Fixture Direction Pin

Product Code 11R-TP-XR004

Drill Extender

Product Code 11R-TX-XR001

1.25 Hex Driver With –

SQ Head(4×4)

Type Diameter Product Code
Short 17 mm 11R-TR-XR018
Long 23 mm 11R-TR-XR019
Long 28 mm 11R-TR-XR028

Implant Ratchet Driver

SQ Head(4×4)

Type Product Code
Short 11R-TR-XR0025
Long 11R-TR-XR0026

Rachet Adaptor(4×4)

Product Code 11R-TR-XR022

Depth Gauge

Depth Gauge
Product Code Diameter(mm)
11R-TG-XR001 2.0
11R-TG-XR002 2.5

Torque Wrench – Lever Type

(with integrated Ratchet Adaptor 4×4)

Product Code 11R-TW-XR026

Torque Wrench – Settable

(with integrated Ratchet Adaptor 4×4)

Product Code 11R-TW-XR027
